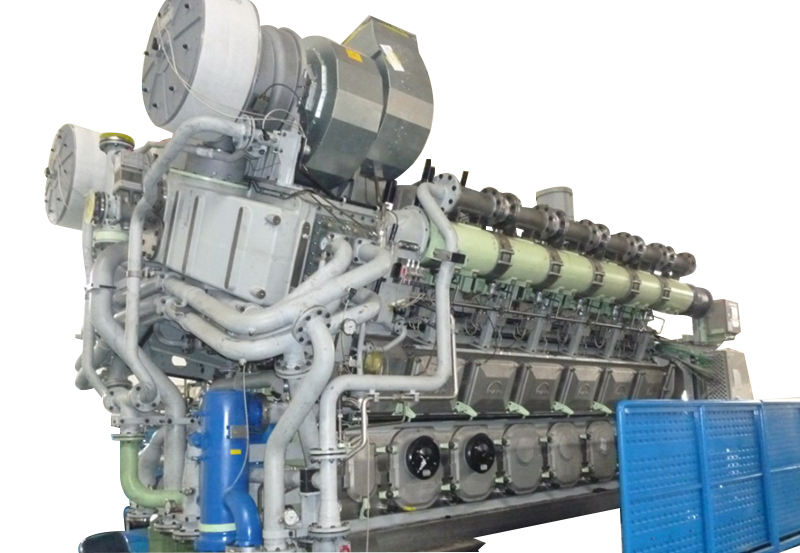

3240 Natural Gas Generator (4500/4800KW)

3240 Natural Gas Generator (4500/4800KW)

3240 natural gas generator (4500/4800KW) developed with German MAN company features high power density and high production output, providing compact structure and long service life. In China, CNPC JICHAI is the only company that gains the qualification for the production of 3240 natural gas generator (4500/4800KW). With compact structure and light weigh, it is also easy to operate and convenient to maintain so that it can easily fit our different applications. This natural gas generator is capable of achieving sufficient quietness, low emissions and low fuel consumption at the top level in its class for sustainable development. The thermal efficiency of its engine is over 44%, making it a durable and economical generator that reached the international advanced level. 3240 natural gas generator we produced can be widely applicable to natural gas boosters, underground natural gas storage and compressor facility and so on.

Click Here to Contact Sales
Features of 3240 Natural Gas Generator (4500/4800KW)
  • Pre-combustion cylinder head,learn combustion. The gas engine combustion organization adopts the pre-combustion chamber cylinder cover structure and achieve lean combustion through Muller cycle and air-fuel ratio.
  • Multi-point injection, high-energy ignition. The gas engine adopts multi-point injection technology, high-energy ignition method, and the best parameter values are matched to achieve the best performance indicators of the engine.
  • The integrated SaCoSOne control system provides engine control and alarming, monitoring and safety protection functions.
  • High turbocharged, two-stage intercooling
  • The filter element adopts a metal filter element and can be automatically cleaned without replacing the filter element. It can not only guarantee the oil filter requirements of the engine, but also extend the servicing life, reduce the use cost and maintenance labor intensity.
  • Self-cleaning filter technology
  • Steel top ball iron skirt piston
  • Double-layer alloy bearing
  • Crankcase oil mist monitoring
Technical parameters
Generating set model 4800GF-T 4500GF-T
Alternator model LEROY-SOMER(standard configuration) Other brands are optional.
Panel model GPL4800 GPL4500
Rated power (kW) 4800 4500
Rated voltage (V) 6300V/10500V 13800
Rated frequency (Hz) 50 60
Rated power factor 0.8
Overall dimension (mm) 10460×3470×4750
Weight (kg) 107000
Engine model 12V 32/40
Type Four-stroke, water cooling,turbocharged, inlet air cooling, preignition chamber, muti-point injection, air-fuel ratio control
Bore (mm) 320
Stroke (mm) 400
Single displacement (L) 32.17
Rated speed (r/min) 750 720
Rated power (kw) 5000 4620
Gas pressure 500KPa
Gas consumption ≤8180kJ/kW·h
Oil consumption ≤0.35g/kW·h
Exhaust tem.(before turbine) ≤620℃
Heat efficiency 44%
NOx emission 0.5g/Nm3@5%O2
Type of cooling Water cooling, open type with cooling tower, close type with horizontal radiator
Starting method Air starting
Direction of rotation Clockwise(facing the power output end)

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
