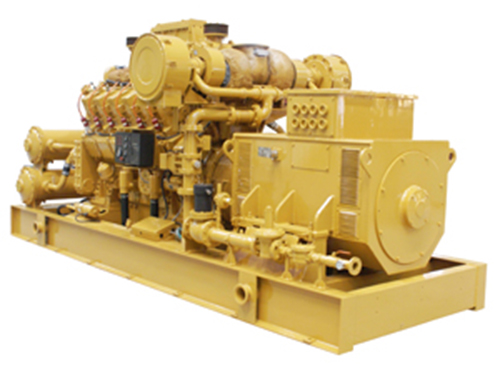

3412T Natural Gas Generator(1000kw)

3412T Natural Gas Generator(1000kw)

Description
  • Engine model: A12V190ZLT
  • Rated power: 1000kW
  • Rated voltage: 400V/230V
  • Rated rpm: 1500r/min
  • Rated current: 1804A
  • Overhaul time: ≥25000h
Click Here to Contact Sales
Technical Parameters of Natural Gas Engine
Model A12V190ZLT
Code 3012T
Type 4-stroke, spark ignition and water-cooled, turbocharged, inlet air cooling, mechanical inter-mixed
Arrangement of cylinders V shape, 60° angle
Number of cylinders 12
Diameter of cylinders 190 mm
Stroke 215 mm
Rated rev 1500 r/min
Idle speed 700 r/min
Rated power 1100kW
Heat consumption ≤11000 kJ/kw·h
Oil consumption ≤1 g/kw·h
Cooling mode Pressurized water cooling
Lubrication mode Pressure and spray lubrication
Exhaust temperature ≤650℃(before entering turbine)
Steady state speed governing rate ≤5%
Overhaul time ≥25000h
Starting type Air/electric motor starting
Technical Specs and Performances of Natural Gas Generator Set
Generating set model 1000GF—TK
Engine model A12V190ZLT
Generator model 1FC6504-4LA42
Excitation Brushless phase compound excitation(three-phase four-wire)automatic voltage regulation, F class insulation
Control panel type KT1000A-1
Rated power 1000kW
Rated voltage 400V/230V
Rated rpm 1500r/min
Rated current 1804A
Rated power factor 0.8(lagging)
Starting mode air /24 DC starting
Cooling water circulation system Open type with heat exchanger
Overhaul time ≥25000h

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.

CNPC JICHAI
Send an Inquiry
Other Products

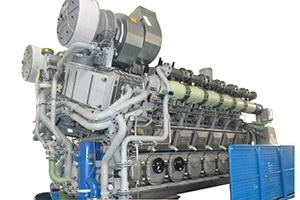

  • 3240 Natural Gas Generator (4500/4800KW)
    3240 Natural Gas Generator (4500/4800KW)

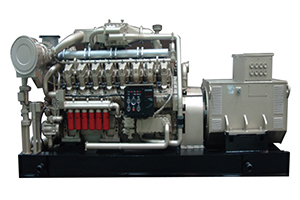

  • 6000 Natural Gas Generator (1100-1500KW)
    6000 Natural Gas Generator (1100-1500KW)

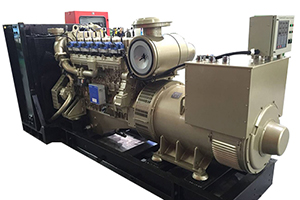

  • 140 Natural Gas Generator (300KW)
    140 Natural Gas Generator (300KW)

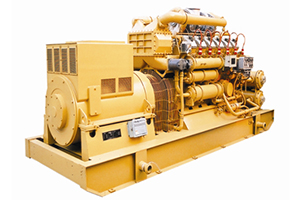

  • 127 Natural Gas Generator
