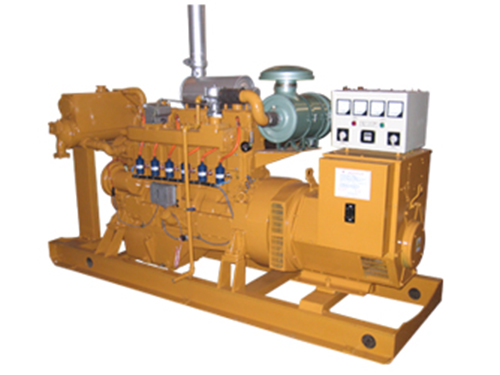

135 Small Power Generator (24~200KW)

135 Small Power Generator (24~200KW)

Description of 135 Small Power Generator
  • Rated rpm: 1500r/min;
  • Power supply mode: three-phase four-line;
  • Starting mode: manual starting/ 24DC starting;
  • Cooling mode: closed/semi open water cooled;
  • Gas consumption: ≤0.33m3/kW.h;
  • Heat consumption: ≤11500 kJ/ kW.h
Click Here to Contact Sales
Technical Specification of Small Power Generator
Set model 5 GFT 30GFT 40GFTA1 65GFTA1 80GF-Z 90GFTA1 120GFTA1 140GFTA1
Type natural gas biogas natural gas
Engine model Q1100D Q4135D Q4135AD1 Q6135AD1 Q6135Z Q6135DR1 Q6140DR1 Q12V135DA1
Rated power(kW) 5 30 40 65 80 90 120 140
Rated rev(r/min) 1500
Rated voltage(V) 400
Rated current (A) 9 54 72 117 144 162 216 252
Rated frequency(Hz) 50
Power factor 0.8
Power supply three-phase four-line
Excitation brushless
Starting mode manual starting/ 24DC starting
Cooling mode closed water cooled semi-open closed water-cooled
Heat consumption ≤11500 kJ/kw·h ≤11500 kJ/kw·h
Gas consumption ≤0.33m3/kW.h ≤0.33 m3/kW.h
Outline dimensions Length(mm) 1400 2420 2420 3000 3000 3000 3200 3550
Width(mm) 580 900 900 900 900 900 900 1150
Height(mm) 720 1500 1500 1500 1500 1500 1500 1650
Net weight (kg) 350 2120 2120 2410 2530 2600 3200

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
