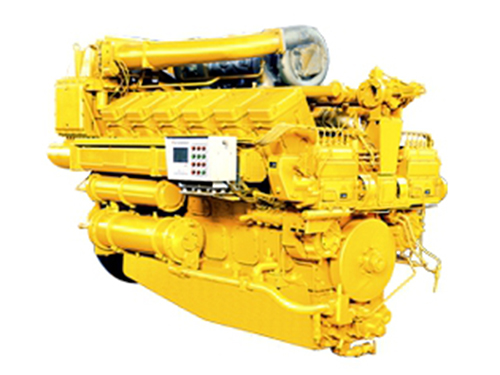

2000 Diesel Engine (390-900KW)

2000 Diesel Engine (390-900KW)

Features of 2000 Diesel Engine
  • Improved fuel economy: compared with our first generation, it offers up to 10 g/kw.h in terms of fuel economy
  • Increased power output: it provides up to 120kW than the first generation
  • Low noise level and stability
  • Reasonable structure, simple maintenance
Applications

This powerful engine can be used in torque converter sets or diesel generating sets to drive drilling rigs, mud pumps, fire pumps etc.

Click Here to Contact Sales

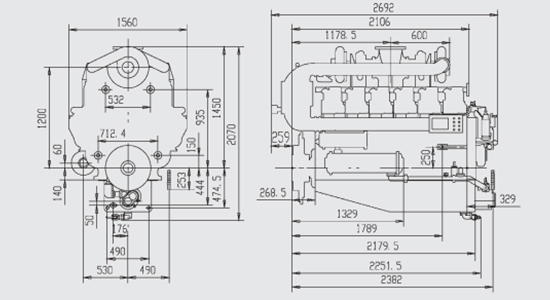

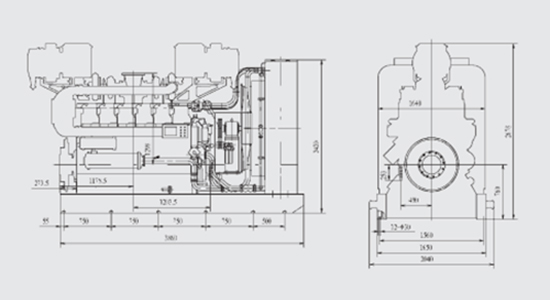

The project drawing of exterior view and interface size

    The project drawing of exterior view and interface size The project drawing of exterior view and interface size

Technical Specification of 2000 Diesel Engine
Model Rated power
(kW)
Rated rpm
(r/min)
Fuel consumption (g/kw.h) Oil consumption (g/kw.h) Overall dimensions
(mm)
Net weight
(kg)
G12V190ZL1 1000 1500 209.4 ≤1.6 2692x1560x2070 5300
G12V190PZL1 4301x1980x2678 8100
G12V190ZL-3 810 1300 2692x1560x2070 5300
G12V190PZL-3 4301x1980x2678 8100
G12V190ZL-1 740 1200 2692x1560x2070 5300
G12V190PZL-1 4301x1980x2678 8100
G12V190ZL-2 600 1000 2692x1560x2070 5300
G12V190PZL-2 4301x1980x2678 8100
G8V190ZL 600 1500 213.5 ≤2.7 2112x1560x2080 4300
G8V190PZL 3950x1980x2678 6750
G8V190ZL-3 510 1300 2112x1560x2080 4300
G8V190PZL-3 3950x1980x2678 6750
G8V190ZL-1 470 1200 2112x1560x2080 4300
G8V190PZL-1 3950x1980x2678 6750
G8V190ZL-2 390 1000 2112x1560x2080 4300
G8V190PZL-2 3950x1980x2678 6750
Technical Parameters
Structure type 4-stroke, direct injection combustion chamber, water-cooled, exhaust gas turbocharged, inlet air inter cooling
Number and arrangement of cylinders 12, 8-cylinder, V shape, 60°angle
Diameter of cylinders(mm) 190
Stroke(mm) 210
Total displacement(L) 71.45/47.6
Compression ratio 14:1
Exhaust temperature(℃) ≤600
Outlet temperature(℃) ≤90
Oil temperature(oil sump,℃) ≤95
Steady speed change ratio (%) ≤8(generator sets≤5)
Cooling mode Pressurized water cooling
Lubrication mode Press and spray lubrication
Starting mode Air motor or electric motor starting

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
