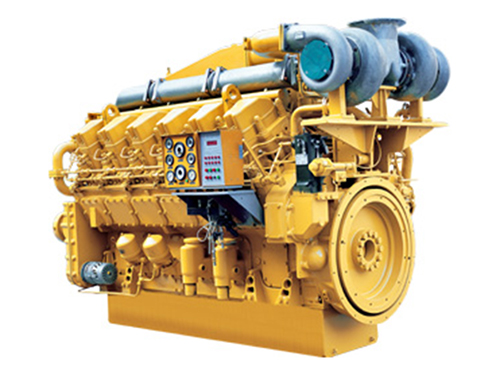

3000 Diesel Engine(600~1200kW)

3000 Diesel Engine(600~1200kW)

3000 diesel engine is further integrated with the advanced technology and new structure based on our 6000 diesel engine. It has enhanced fuel properties and improved engine performance of international advanced level to fit various applications in small- and medium-scale captive power plant, drilling rig, mine locomotive, marine diesel engine, etc.

3000 diesel engine can satisfy the power requirements of the land mechanical or electric drilling engines with the drilling depth range of 4,000 to 7,000 meters. It can be installed on the same bedplate with the torque converter and coupling to serve as drilling engines or mud pump. A power plant can be established based on 3000 diesel engine integrated with single-bearing generator or double-bearing generator. Moreover, it can also supply as the power of fire-fighting pump and flood control pump. Compared with B3000 diesel engine, 3000 diesel engine has strong reliability and high level of automatic control for easy maintenance and operation, it can be a cost-effective choice for you.

Click Here to Contact Sales
Parameters
Model Basic type
A12V190ZL A12V190ZL-1 A12V190ZL-2 A12V190ZL-3 B12V190ZL B12V190ZL-1 B12V190ZL-2 B12V190ZL-3 BH12V190ZL
Type Four-stroke, water cooling, exhaust gas turbocharged, inlet air inter cooling, direct injection combustion chamber
No.and layout of cylinder 12-cylinder, V shape, 60° angle
Cylinder diameter (mm) 190
Piston stroke (mm) 215
Standby power (kW) 1200 1000 900 1100 1320 1160 960 1210 1360
Standby speed (r/min) 1500 1200 1000 1300 1500 1200 1000 1300 1500
Normal power (kW) 1080 900 810 990 1200 1060 870 1100 1235
Normal speed (r/min) 1500 1200 1000 1300 1500 1200 1000 1300 1500
Cylinder total displacement (L) 73.15
Fuel consumption (g/kW.h) ≤205 ≤202
Oil consumption (g/kW.h) ≤1.0g
Gas exhaust temperature before turbine (℃) ≤650
Water temperature(℃) ≤90
Oil temperature(℃) ≤95
Stable rate (%) ≤5
Cooling Pressurized water cooling
Combustion air flow (kg/s) 2.45 1.96 1.84 2.23 2.7 2.33 1.9 2.45 2.8
Exhaust flow (m³/h) 21516 16793 15113 18313 21839 18862 15386 19539 22956
Oil sump capacity (L) 200 270
High temperature water capacity (L) 130 130
Low temperature water capacity (L) 40 40
Starting Air motor or electric motor starting
Lubricating Press and spray lubrication
Steering Anticlockwise (facing the output end)
Dimension (mm) 2950×1980×2206 2950×2280×2069
Net quality (kg) 9300 9300
Model Matching set engine
A12V190PZL A12V190PZL-1 A12V190PZL-2 A12V190PZL-3 B12V190PZL B12V190PZL-1 B12V190PZL-2 B12V190PZL-3
Type Four-stroke, water cooling, exhaust gas turbocharged, inlet air inter cooling, direct injection combustion chamber
No.and layout of cylinder 12-cylinder, V shape, 60° angle
Cylinder diameter (mm) 190
Piston stroke (mm) 215
Standby power (kW) 1140 940 840 1040 1260 1080 870 1160
Standby speed (r/min) 1500 1200 1000 1300 1500 1200 1000 1300
Normal power (kW) 1026 846 756 936 1140 970 780 1044
Normal speed (r/min) 1500 1200 1000 1300 1500 1200 1000 1300
Cylinder total displacement (L) 73.15
Fuel consumption (g/kW.h) ≤205 ≤202
Oil consumption (g/kW.h) ≤1.0g
Gas exhaust temperature before turbine (℃) ≤650
Water temperature(℃) ≤90
Oil temperature(℃) ≤95
Stable rate (%) ≤5
Cooling Pressurized water cooling
Combustion air flow (kg/s) 2.45 1.96 1.84 2.23 2.7 2.33 1.9 2.45
Exhaust flow (m³/h) 21516 16793 15113 18313 21839 18862 15386 19539
Oil sump capacity (L) 200 270
High temperature water capacity (L) 250 250
Low temperature water capacity (L) 160 160
Starting Air motor or electric motor starting
Lubricating Press and spray lubrication
Steering Anticlockwise (facing the output end)
Dimension (mm) 4130×2250×2738 4189×2345×2636
Net quality (kg) 11000 11000
