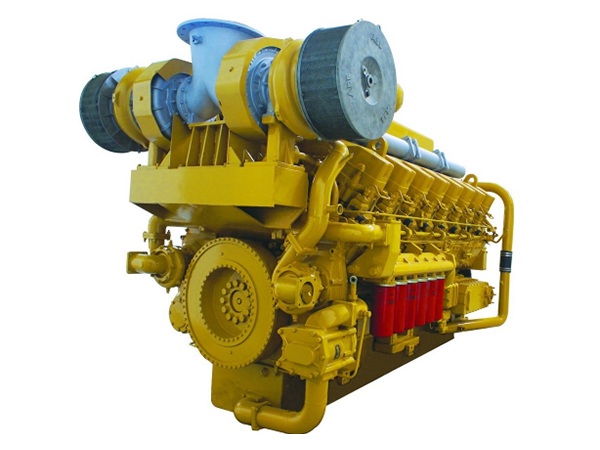

6000-Diesel Engine(1160~2400kw)

6000 Diesel Engine(1160~2400kw)

6000 Diesel Engine(1160~2400kw)

Features of 6000 Diesel Engine:
1. Newly-designed on the basis of the latest technology from China and AVL of Austria
2. Increased diesel efficiency, stronger economy
3.Structure type: 4-stroke, direct injection combustion chamber, water-cooled, exhaust gas turbocharged, inlet air inter cooling
4. Diameter of cylinders: 190(mm)
5. Net weight: 9500~13700 kg
6. Lubrication mode: press and spray lubrication

Applications:
This powerful engine is widely used in oilfield, power station, locomotive and ship etc.

Specification of 6000 Diesel Engine:
Model Rated power
(kw)
Rated rpm
(r/min)
Fuel consumption
(g/kw.h)
Oil consumption
(g/kw.h)
Overall dimensions
(mm)
Structure type
(kg)
H12V190ZL 1740 1500 200 ≤1.0 3234x1140x2286 9500
H12V190PZL 5417x3145x3174 13700
H12V190ZL-1 1400 1200 3234x1140x2286 9500
H12V190PZL-1 5417x3145x3174 13700
H12V190ZL-2 1160 1000 3234x1140x2286 9500
H12V190PZL-2 5417x3145x3174 13700
H16V190ZL 2400 1500 200 ≤1.0 3525x2060x2331 13000

Technical Parameters:
Structure type 4-stroke, direct injection combustion chamber,  water-cooled, exhaust gas turbocharged, inlet air inter cooling
Number and arrangement of cylinders 12, 16-cylinder   V shape   60°angle
Diameter of cylinders(mm) 190
Stroke(mm) 215
Total displacement(L) 73.15/97.53
Compression ratio 14.5:1
Exhaust temperature(℃) ≤650
Outlet temperature(℃) ≤85
Oil temperature(oil sump,℃) ≤90
Steady speed change ratio (%) ≤8(generator sets≤5)
Cooling mode Pressurized water cooling
Lubrication mode Press and spray lubrication
Starting mode Air motor or electric motor starting
