2000-Diesel Generating Set

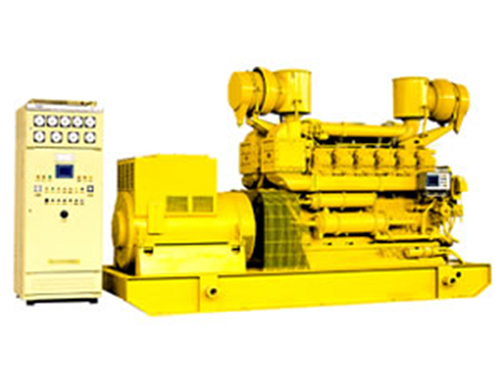

2000 Diesel Generating Set

2000 Diesel Generating Set

Description of 2000 Diesel Generating Set:
1. State-of-the-art design, convenient maintenance
2. No leakage of oil, water and gas
3. Power: 300~800KW
4. Net weight: 3000~8000Kg
5. No-load voltage regulation: 95~105% of rated voltage
6. Diesel generator can be customized upon request

Applications:
The diesel engine it used can meet the power requirements of drilling rigs, engineering machinery etc. In addition, two or more diesel generating sets can be used to form a power station.

Specification of 2000 Diesel Generating Set:
Set
model
Diesel  engine
model
Generator model Rated power(KW) Rated voltage
(V)
Rated frequency (HZ) Overall dimensions L*B*H
(mm)
Net weight (Kg)
300GF4 G8V190PZL-2 1FC5404-6TA42 300 400/230 50 5270×2040×2778 3000
500GF17-2 G12V190ZLD1-2 1FC6456-6LA4 500 400/230 50 5925×2040×2678 5000
700GF1-3 G12V190ZLD1 1FC6456-4LA4 700 400/230 50 5925×2040×2678 7000
700GF1-K3 G12V190ZLD1 LV1634D2 700 400/230 50 4515×2040×2678 7000
800GF4-7 G12V190ZLD2 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000
800GF4-K1 G12V190ZLD4 1FC6502-4LA42 800 400/230 50 4515×2040×2678 8000
800GF4-K4 G12V190ZLD4 LV1634E2 800 400/230 50 4515×2040×2678 8000

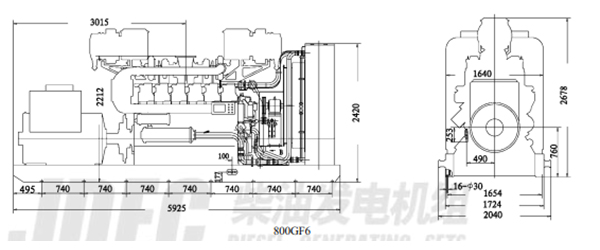

800GF6 G12V190ZLD5 JFG5001-4/6300 800 6300 50 5925×2040×2678 8000
800GF7 G12V190ZLD5 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000
800GFZ-1 G12V190ZLD3 1FC6502-4LA42 800 400/230 50 5925×2040×2678 8000

Main Electrical Performance Data:
Voltage Frequency
Steady-state adjusting rate Transient-state adjusting rate Stable  time Fluctuation rate Steady-state adjusting rate Transient-state adjusting rate Stable  time Fluctuation rate
±2.5% ﹣15%~+20% 1.5S 0.5% 5% ±10% 7S 0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage

Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
