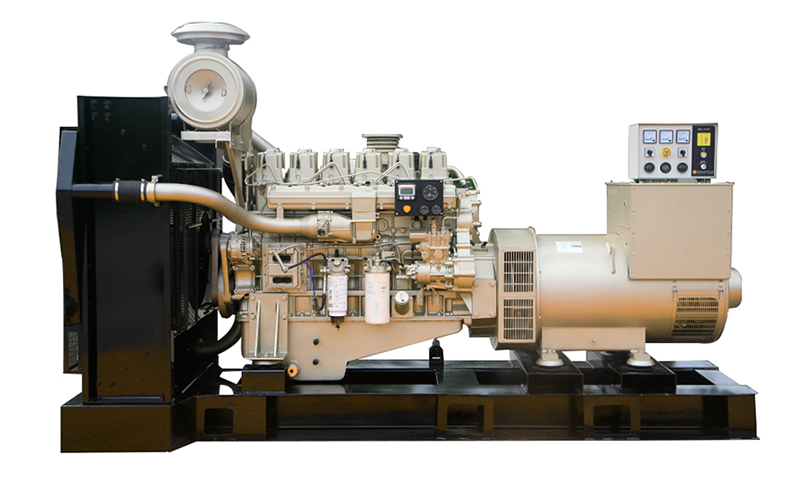

140 Diesel Generating Set (400~900KW)

140 Diesel Generating Set (400~900KW)
Parameters
Set model 400GF30 450GF30 800GF30 900GF30
Engine model JC15D JC15D-3 JC30D JC30D-3
Generator model XN5C series
Control panel model Backpack type
Rated power(kW) 400 450 800 900
Rated voltage(V) 400 480 400 480
Rated frequency(Hz) 50 60 50 60
Rated power factor 1500 1800 1500 1800
Connection mode Three-phase four-wire
Protection level IP23
Insulation class H
Steady-state voltage adjusting rate ≤±2.5%
Transient-state voltage adjusting rate ≤+20%（-15）
Voltage stable time ≤1.5 s
Voltage fluctuation rate ≤1.0%
Steady-state frequency adjusting rate 0～5%
Transient-state frequency adjusting rate ≤±10%
Frequency stable time ≤7 s
Frequency fluctuation rate ≤0.5%
Overall dimensions (mm) 3420×1270×1654 4500×1941×2031
Net weight (kg) 3300 6500

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
