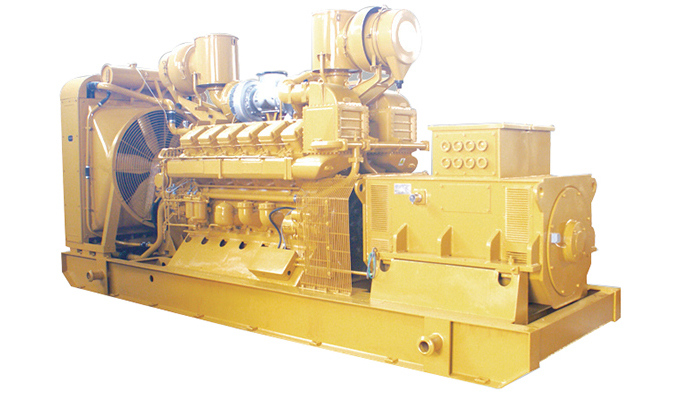

Z12V190B Diesel Generating Set (500~800KW)

Z12V190B Diesel Generating Set (500~800KW)
Parameters
Set model 500GF17 630GF 800GF4
Engine model Z12V190B Z12V190B-1 Z12V190B-2
Generator model 1FC series, Siemens technology, brushless excitation, automatic voltage control
Control panel model GPL500 GPL630 GPL800
Rated power(kW) 500 630 800
Rated voltage(V) 400V/6300V/10500V 480V/13800V 400V/6300V/10500V
Rated frequency(Hz) 50 60 50
Rated power factor 0.8
Connection mode Three-phase four-wire, star connection
Protection level IP23
Insulation class H
Steady-state voltage adjusting rate ≤±2.5%
Transient-state voltage adjusting rate ≤+20%(-15)
Voltage stable time ≤1.5 s
Voltage fluctuation rate ≤1.0%
Steady-state frequency adjusting rate 0~5%
Transient-state frequency adjusting rate ≤±10%
Frequency stable time ≤7 s
Frequency fluctuation rate ≤0.5%
Overall dimensions (mm) 5925×1970×2778
Net weight (kg) 14000 13800 13600

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
