Jichai biogas generator is developed in cooperation with WOODWARD and adopts an advanced international external gas-fired external mixing method. By mixing gas and air before the turbocharger and combining it with modern electronic control and lean-burn combustion technology, the biogas genset delivers strong cost-effectiveness, excellent controllability, and high reliability.
Features of Biogas Generator

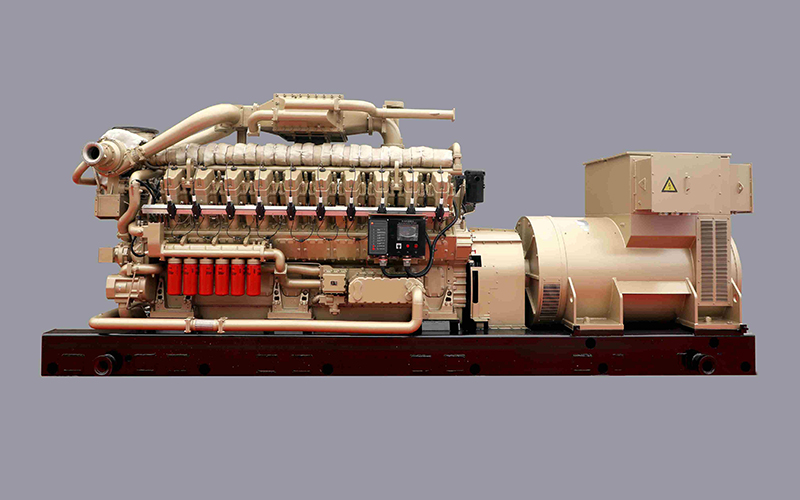

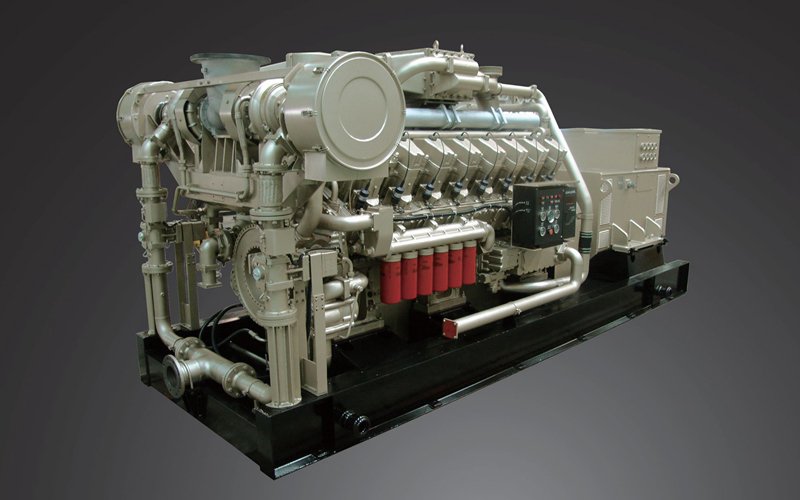

Model: G12V190
100% independent intellectual property rights
International mainstream control technology (intelligent engine management system)
Features advanced air–gas ratio control (TECJET automatic AFR adjustment)
High-flow, high-pressure intake system designed to accommodate wide methane concentration variations (30%–60%)
Low-pressure intake and lean-burn combustion technology, suitable for low-pressure biogas and enabling better emissions performance
Advanced management module supporting automatic synchronization and automatic load distribution
Online maintenance technology enabling more than 2,500 hours of continuous, trouble-free operation
Digital monitoring system for complete supervision of engine thermal parameters and generator electrical parameters
Compatible with distributed energy systems (thermoelectric and thermoelectric cooler configurations)
Technical Parameter of Biogas Generator
Genset Model
600GF-N
700GF2-Z
1000GF-Z
1100GF-Z
1600GF-Z
1800GF-W
Alternator model
Brushless excitation, automatic voltage regulation
Rated power
600 kW
700 kW
1000 kW
1100 kW
1600 kW
1800 kW
Rated voltage
400V/6300V/10500V/480V/13800V
Rated frequency
50/60 Hz
50/60 Hz
50 Hz/60 Hz
50 Hz/60 Hz
50 Hz/60 Hz
50 Hz/60 Hz
Rated power factor
0.8
0.8
0.8
0.8
0.8
0.8
Protection class
IP23
IP23
IP23
IP23
IP23
IP23
Insulation class
H
H
H
H
H
H
Engine Model
G12V190ZLDZ2-2
C12V190ZLZ-2
H16V190ZLZ-2
L12V200ZLZ-2
L20V190ZLZ-2
L20V200ZLW-2
Type
Four strokes, V-type, turbocharged, inter-cooling, spark plug ignition
No. of cylinder
12
12
16
12
20
20
Bore
190 mm
190 mm
190 mm
200 mm
190 mm
200 mm
Stroke
210 mm
230 mm
215 mm
255 mm
255 mm
255 mm
Total displacement
71.5 L
78.3 L
97.53 L
96.1 L
144.6 L
160.2 L
Rated speed
1000 r/min, 1200 r/min
1000 r/min
1000 r/min, 1200 r/min
1000 r/min, 1200 r/min
1000 r/min, 1200 r/min
1000 r/min, 1200 r/min
Rated power
660 kW
750 kW
1200 kW
1200 kW
1750 kW
2000 kW
Gas consumption
≤11000 kJ/kW.h
≤9500 kJ/kW.h
≤9500 kJ/kW.h
≤9000 kJ/kW.h
≤8600 kJ/kW.h
≤8600 kJ/kW.h
Oil consumption
≤0.8 g/kW.h
≤0.6 g/kW.h
≤0.6 g/kW.h
≤0.45 g/kW.h
≤0.3 g/kW.h
≤0.3~0.6 g/kW.h
Cooling type
Open type-cooling tower/Closed type-vertical or horizontal radiator
Lubrication method
Pressure and splash lubrication
Starting method
Electric starting
Electric starting
Electric starting
Electric starting
Electric starting/Air starting
Electric starting/Air starting

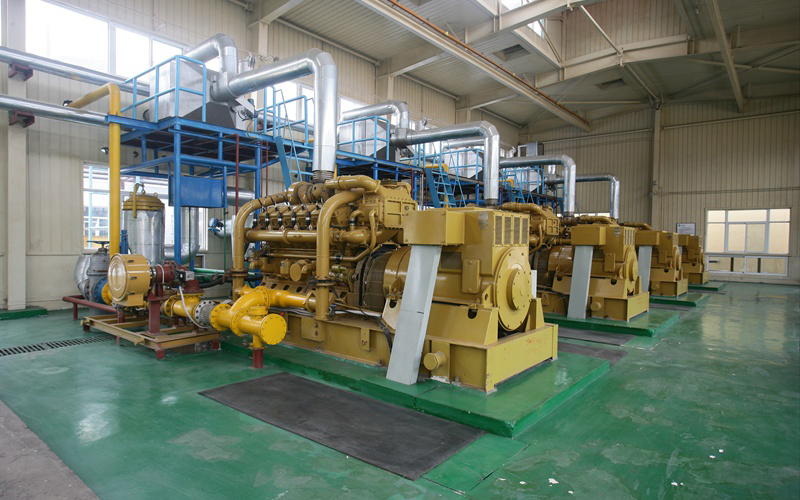

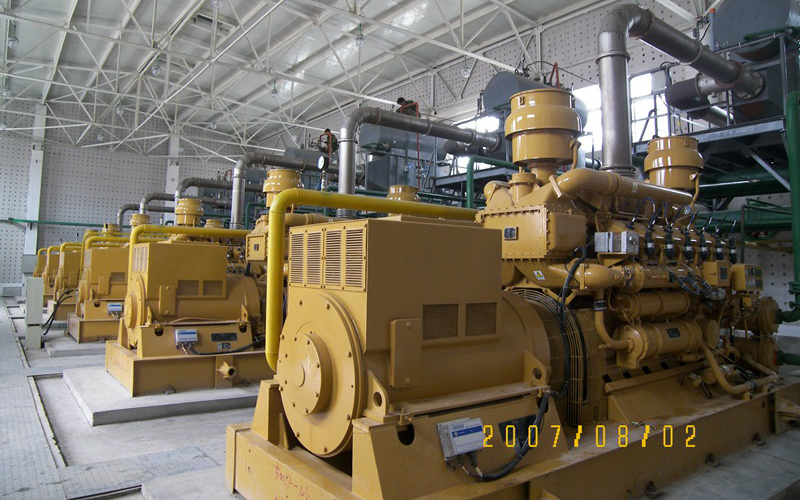

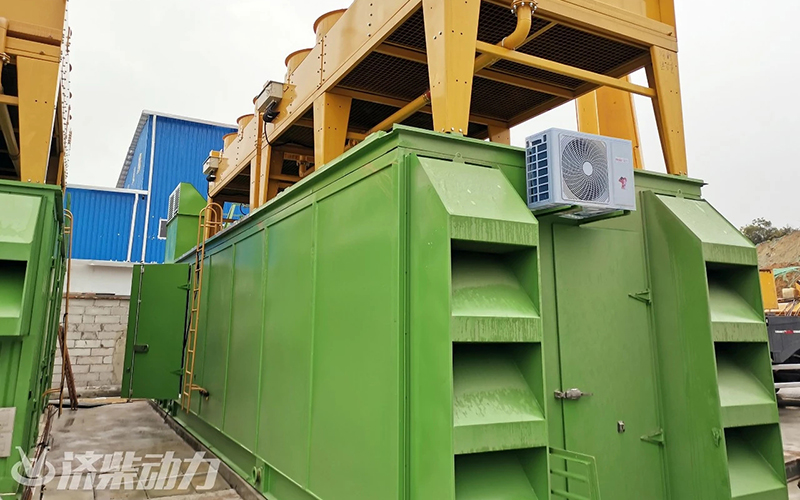

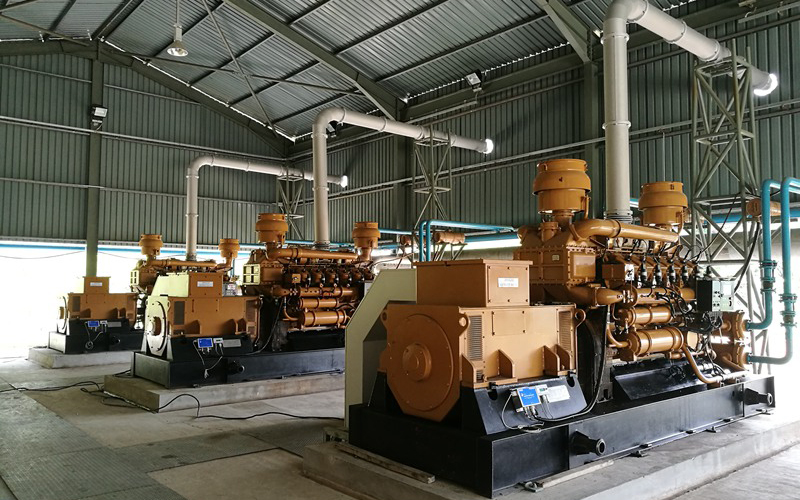

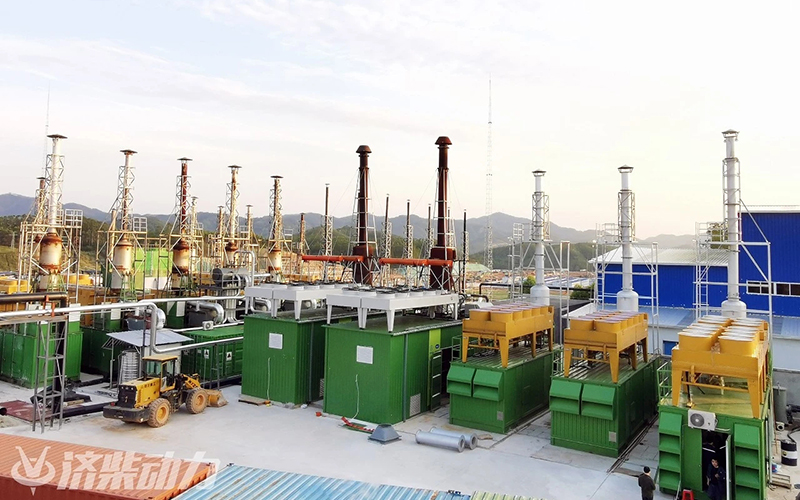

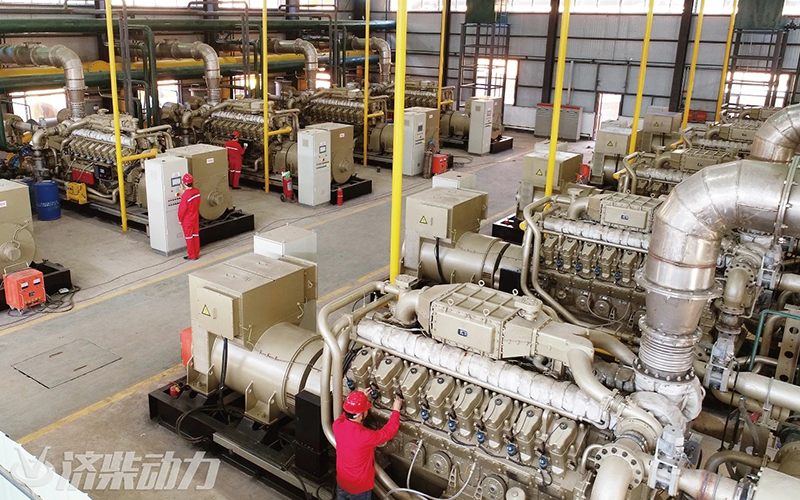

Application Cases
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.

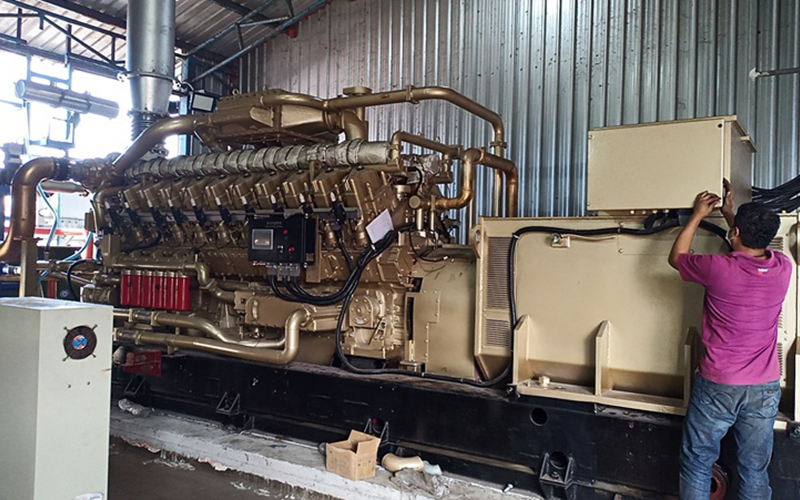

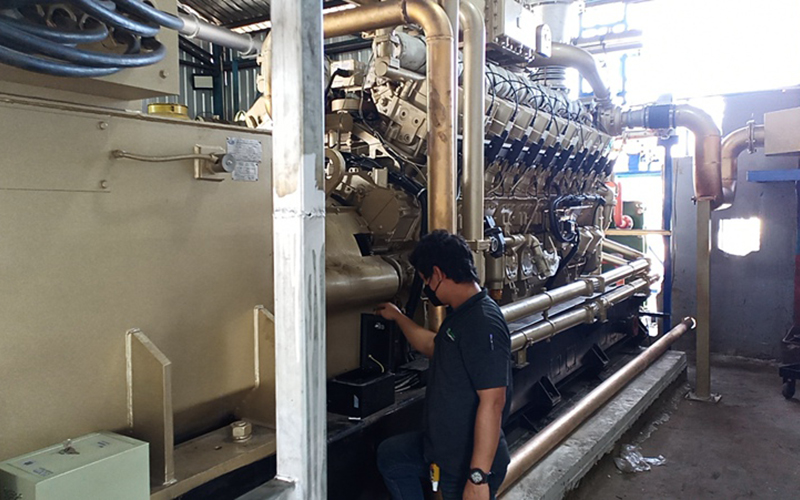

600 kW biogas generator
