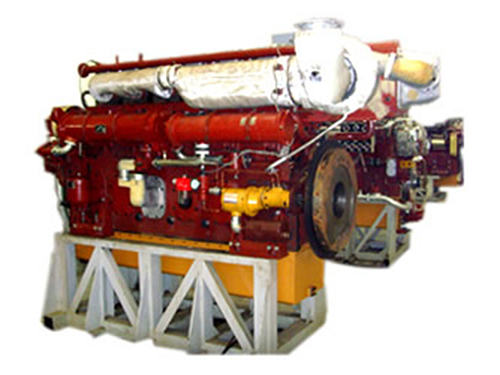

Heavy-oil Marine Engine

Heavy-oil Marine Engine

Description of Heavy-oil Marine Engine
  • Rated power: 380~720KW
  • Fuel consumption: ≤204 g/kW.h
  • Oil consumption: ≤1.2 g/kW.h
  • Overall dimensions: 2995m×1133m×1754m
  • 3175m×1208m×2055m
  • Net weight: 3960kg and 4500 kg
Applications

With lower cost of heavy-oil, this propulsion engine is used extensively in ships and generating sets etc.

Click Here to Contact Sales
Technical Specification of Heavy-oil Marine Diesel Engine
Model Rated power (kW) Rated rpm (r/min) Fuel consumption (g/kW.h) Oil consumption (g/kW.h) Overall dimensions (mm) Net weight (kg)
G6190Z LC
G6190Z LCZ-R		 540 1450 ≤204 ≤1.2 2995×1133×1754 3960
G6190Z LC-1
G6190Z LCZ-1R		 450 1200 ≤204 ≤1.2 2995×1133×1754 3960
G6190Z LC-2
G6190Z LCZ-2R		 380 1000 ≤202 ≤1.2 2995×1133×1754 3960
8190ZLCZ-R
8190ZLC		 720 1450 ≤204 ≤1.2 3175×1208×2055 4500
8190ZLCZ-1R
8190ZLC--1		 600 1200 ≤202 ≤1.2 3175×1208×2055 4500
8190ZLCZ1-1R
8190ZLC1--1		 490 1200 ≤202 ≤1.2 3175×1208×2055 4500
8190ZLCZ-2R
8190ZLC--2

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
