Gas Compression Units for Unconventional Gas (Shale/Tight Gas/CBM)

This gas compression unit is designed for the gathering and transmission of shale gas, tight gas, and coalbed methane (CBM).

Medium: Shale gas / Tight gas / Coalbed methane (CBM)
Speed: 1000-1500 rpm
Power: 280-4800 kW
Inlet Pressure: 0.6-3.2 MPa
Discharge Pressure: 2-10 MPa
Gas Flow Rate: 3-150×10⁴ m³/d

• The gas compression unit features a high-speed, symmetrically balanced compressor package. Its modular structure ensures a compact footprint and optimized transportability.
• Platform booster units support both fixed-foundation installation and skid-mounted mobility. The latter allows for non-permanent anchoring, facilitating rapid relocation and transport between sites.
• Equipped with integrated local control and remote monitoring capabilities, enabling fully unattended field operation.

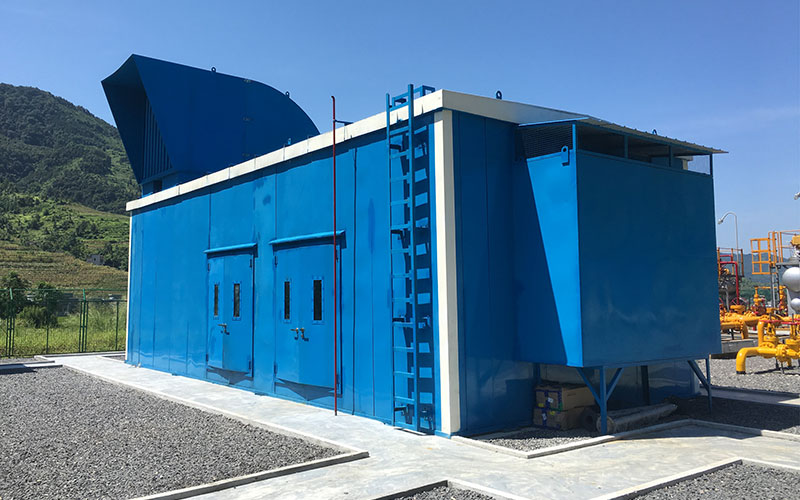

• The gas compression system is engineered for low-noise performance. The standard acoustic enclosure maintains sound levels below 85 dB(A), while the enhanced model achieves below 65 dB(A) during the day and 55 dB(A) at night to meet stringent environmental regulations.
