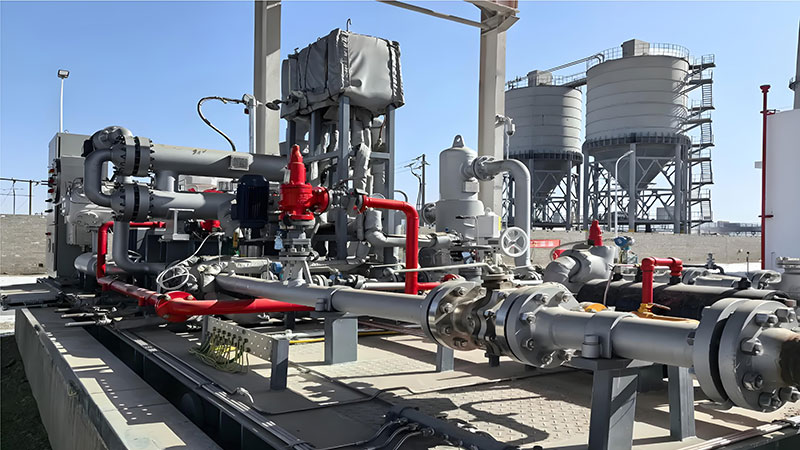

Hydrogen Compressor Package

The hydrogen compressor package designed for boosting, gathering, transmission, and injection applications across the hydrogen industry.

Medium: Hydrogen
Speed: 750-1000 rpm
Power: 300-1200 kW
Inlet Pressure: 0.4-2 MPa
Discharge Pressure: 5-9.5 MPa
Gas Flow Rate: 4-16×10⁴ m³/d

• The hydrogen compressor unit utilizes a high-speed, short-stroke, direct-drive design. Under equivalent compression power, the system offers a compact footprint and reduced weight, enabling a fully integrated skid-mounted configuration.
• Engineered with wide gas passages and naturally cooled cylinders to minimize gas pulsation and pressure drop. Custom-designed valves, featuring arc-shaped sealing surfaces and integrated damping plates, ensure high efficiency and extended service life under demanding field conditions.
• An integrated manual or electrically controlled clearance volume adjustment system enables precise and flexible regulation of discharge capacity.
• The oil-free lubrication design eliminates the risk of downstream gas contamination, ensuring high-purity output.
• Equipped with a PLC-based intelligent control system, the compressor package supports one-touch start-up and fully unattended operation.
