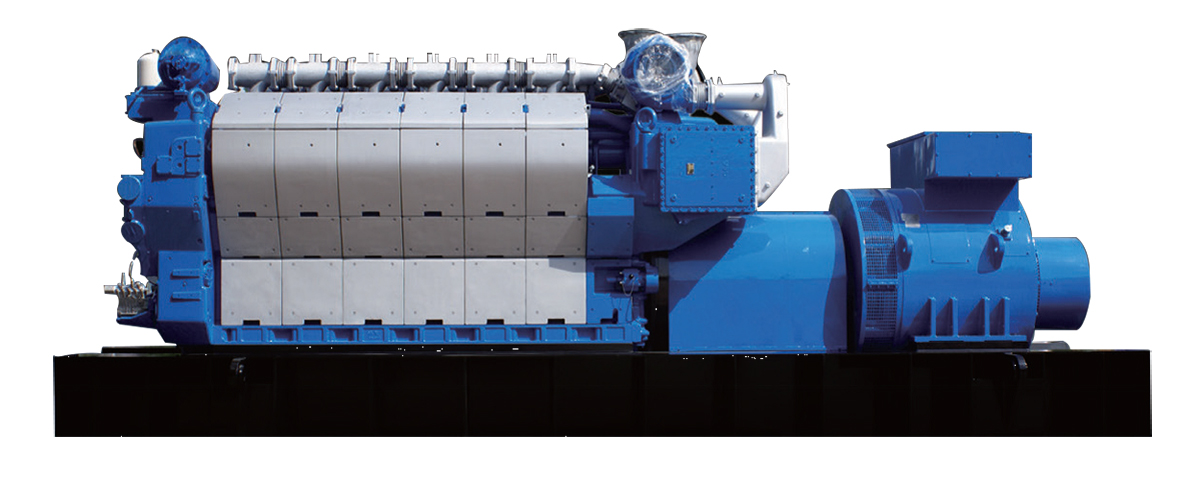

2632 Diesel Generating Set (2400~3900KW)

2632 Diesel Generating Set (2400~3900KW)
Parameters
Set model 2400GF 2800GF 3200GF 3900GF
Generator model CSIC TFC4 series (standard configuration) Other brands are optional.
Control panel model GPL2400 GPL2800 GPL3200 GPL3900
Rated power(kW) 2400 2800 3200 3900
Rated voltage(V) 6300/10500 13800 6300V/10500V 13800
Rated frequency(Hz) 60 50 60 50
Rated power factor 0.8
Connection mode Three-phase three-wire
Protection level IP23
Insulation class H
Steady-state voltage adjusting rate ≤±2.5%
Transient-state voltage adjusting rate ≤+20%(-15)
Voltage stable time ≤1.5 s
Voltage fluctuation rate ≤1.0%
Steady-state frequency adjusting rate 0~5%
Transient-state frequency adjusting rate ≤±10%
Frequency stable time ≤7 s
Frequency fluctuation rate ≤0.5%
Overall dimensions (mm) 8800×2920×3535 11392×2820×3600
Net weight (kg) 62000 59000

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
