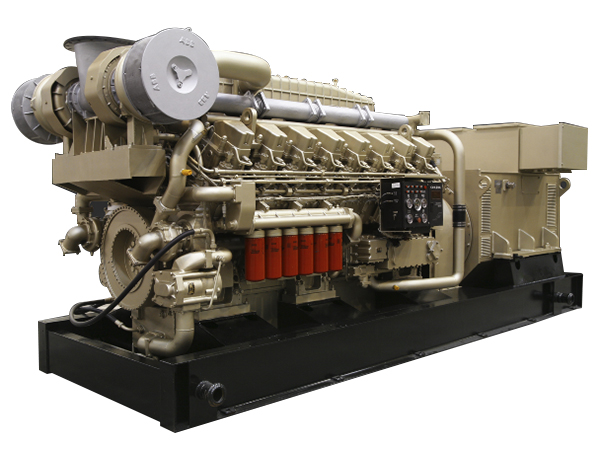

6000 Diesel Generating Set

6000 Diesel Generating Set
Description
  • Newly-designed by adopting modern technology from AVL of Austria
  • Power: 1350~2000 KW
  • Rated voltage: 400/230 V
  • No-load voltage regulation: 95~105% of rated voltage
  • Different kind of generators is available to meet customers' specific requirements
Applications

With the powerful 6000-diesel engine, this genset is widely used in power plants.

Click Here to Contact Sales

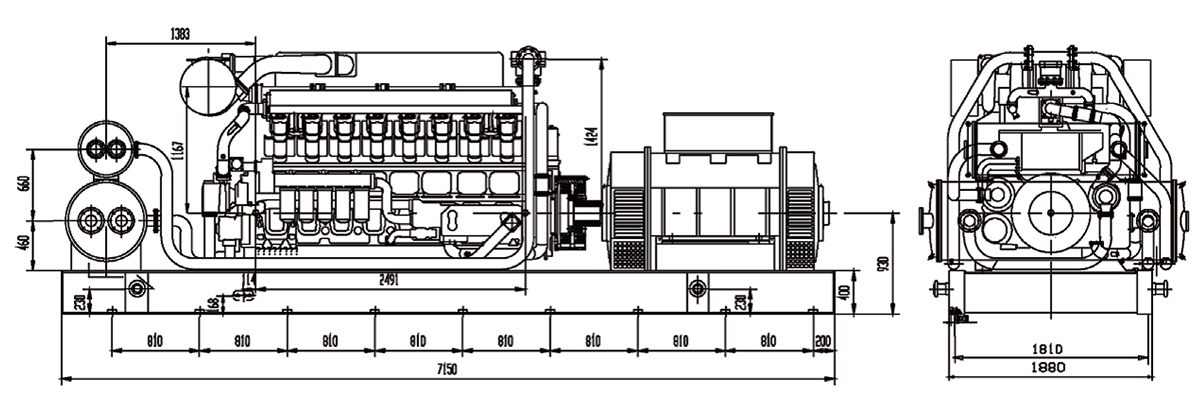

The project drawing of exterior view and interface size
    The project drawing of exterior view and interface size
Specification of 6000 Diesel Generating Set
Set model Diesel engine model Generator model Rated power (KW) Rated voltage (V) Rated frequency (HZ) Overall dimensions L*B*H (mm) Net weight (Kg)
1350GF H12V190ZL DIGI1308/4 1350 400/230 50 7880×2869×3175 19100
1350GF-K H12V190ZLD 1FC6566-4TA42 1350 400/230 50 5930×2180×2421 17000
1350GFZ H12V190PZLD 1FC6566-4TA42 1350 400/230 50 7880×2869×3175 19500
1500GF H12V190ZL 1FC6566-4TA42 1500 400/230 50 7880×2869×3175 19500
1500GF-K H12V190ZL HCI734H2 1500 400/230 50 5930×2180×2421 17000
1500GFZ H12V190ZLD 1FC6566-4TA42-Z 1500 400/230 50 7880×2869×3175 19500
2000GF H16V190ZLD 1FC5636-4BA42 2000 400/230 50 9060×2869×3175 24000
2000GF-K H16V190ZLD 1FC5636-4BA42 2000 400/230 50 7150×2180×2421 21000
2000GFZ H16V190ZLD 1FC5636-4BA42 2000 400/230 50 9060×2869×3175 24000
Main Electrical Performance Data
Voltage Frequency
Steady-state adjusting rate Transient-state adjusting rate Stable time Fluctuation rate Steady-state adjusting rate Transient-state adjusting rate Stable time Fluctuation rate
±2.5% ﹣15%~+20% 1.5S 0.5% 5% ±10% 7S 0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage
Control Panel

    The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
