Natural Gas Generator (4000kW)

Natural Gas Generator (4000kW)

Advantage

2632 high-power natural gas generator features high pressurization capability, high output, high efficiency, low emissions, and environmentally friendly operation. This generator has a gas consumption rate of 8,500 kJ/kW·h and a thermal efficiency greater than 44%.

Click Here to Contact Sales
Features of Natural Gas Generator
  • Precise λ control (air–fuel ratio), achieving lean-burn operation up to 2.3
  • High thermal efficiency up to 44% and enhanced safety through explosion-proof design, double-walled gas pipelines, and oil-mist detectors for each system
  • High pressurization and high Miller-cycle capability for reduced emissions
  • Features knock-control technology with explosion pressure monitoring or in-cylinder combustion temperature monitoring
  • Multipoint electronic control (intake port injection) supported by an intelligent engine management system
  • Optional control of intake volume and intake timing for both the main combustion chamber and the pre-chamber
  • Load balance achieved through online correction based on the temperature control system at the rear of the cylinder
  • High turbocharging with two-stage cooling for improved effectiveness
  • Automatic cleaning filtration technology, using a metal filter element that can be automatically cleaned without replacement. This maintains engine oil filtration requirements, extends service life, reduces operating costs, and lowers maintenance labor intensity
Technical Parameter of Natural Gas Generator
Genset Model 4000GF10-T 3600GF-T
Alternator model Brushless excitation, automatic voltage regulation
Rated power 4000 kW 3600 kW
Rated voltage 6300V/10500V/13800V
Rated frequency 50 Hz 60 Hz
Rated power factor 0.8
Engine Model 16V 26/32
Type Four strokes, water cooling, turbocharged intercooling, pre-burning zone, multi-point injection, compression ratio control
No. of cylinder 16
Bore 260 mm
Stroke 320 mm
Single cylinder displacement 17 L
Rated speed 1000 r/min 900 r/min
Rated power 4200 kW 3780 kW
Gas consumption ≤8600 kJ/kW.h
Oil consumption ≤0.3 g/kW.h
Cooling type Open type-cooling tower/Closed type-horizontal radiator
Starting method Air starting

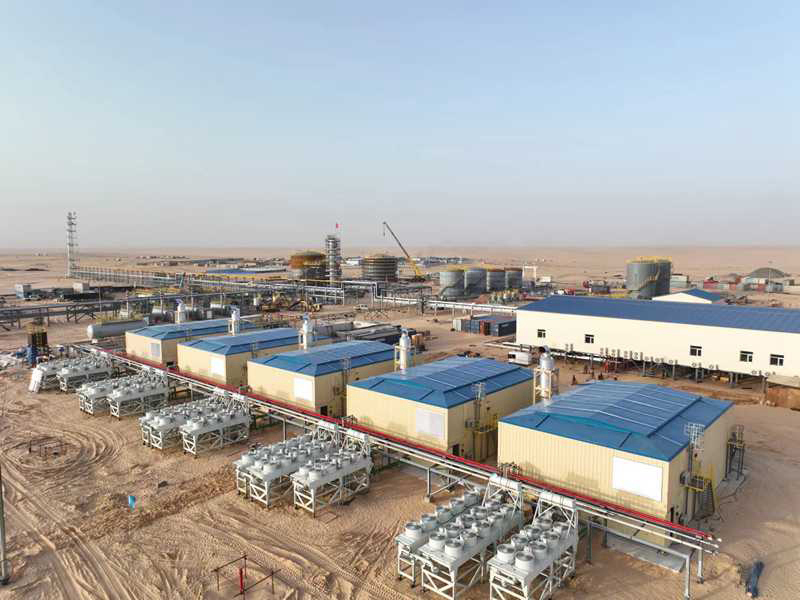

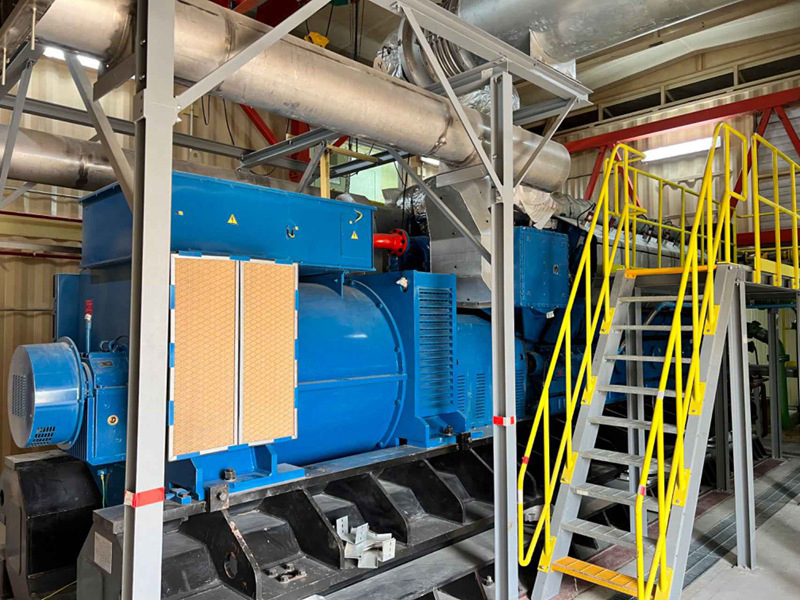

Application Cases
