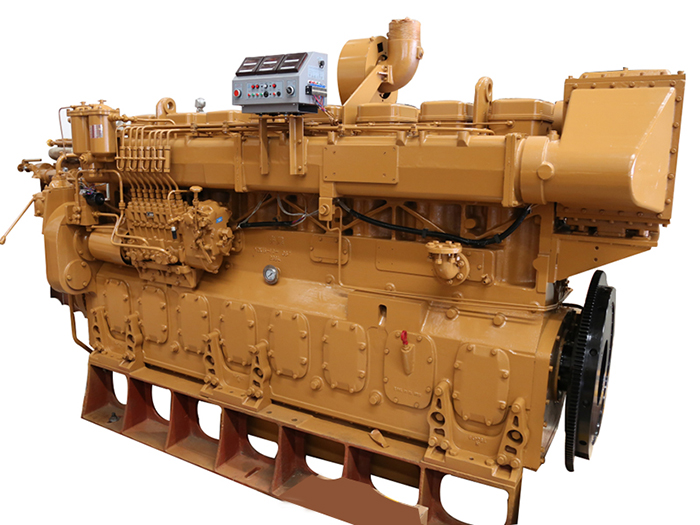

C8190 Marine Engine (735-1000KW)

C8190 Marine Engine (735-1000KW)
Technical Specification
Model C8190ZLC-2 C8190ZLC-1 C8190ZLC-3 C8190ZLC
Type In-line, four stroke, water cooled, turbocharged and inter cooling, direct injection
Rated power (kW/hp) 540/735 650/884 700/952 735/1000
Rated speed (rpm) 1000 1200 1300 1350
Cylinder bore (mm) 190
Piston stroke (mm) 210
Cylinder No. 8
Total displacement (L) 47.63
Compression ratio 14.5:1
Minimal stable speed 400 540 600 600
Fuel consumption (g/kw.h) ≤192
Oil consumption (g/kw.h) ≤1.0
Starting method Air starting or electrical starting
Outline size (LxWxH) (mm) 3180X1220X2055
Net weight (kg) 5200

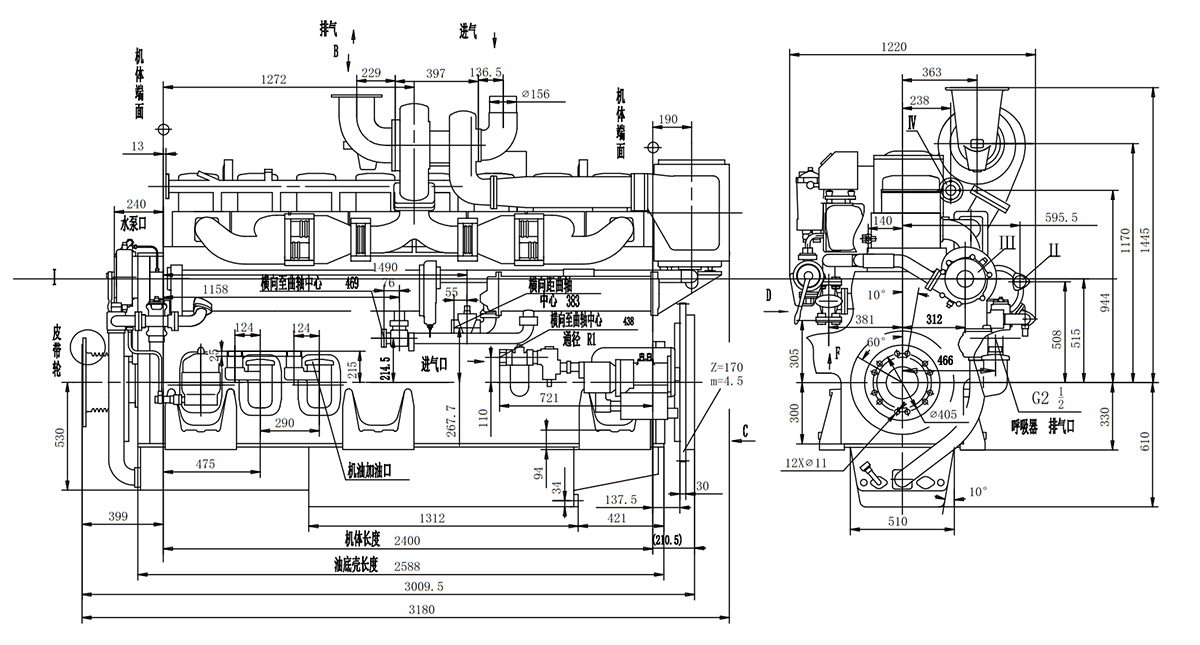

The project drawing of exterior view and interface size
    The project drawing of exterior view and interface size
