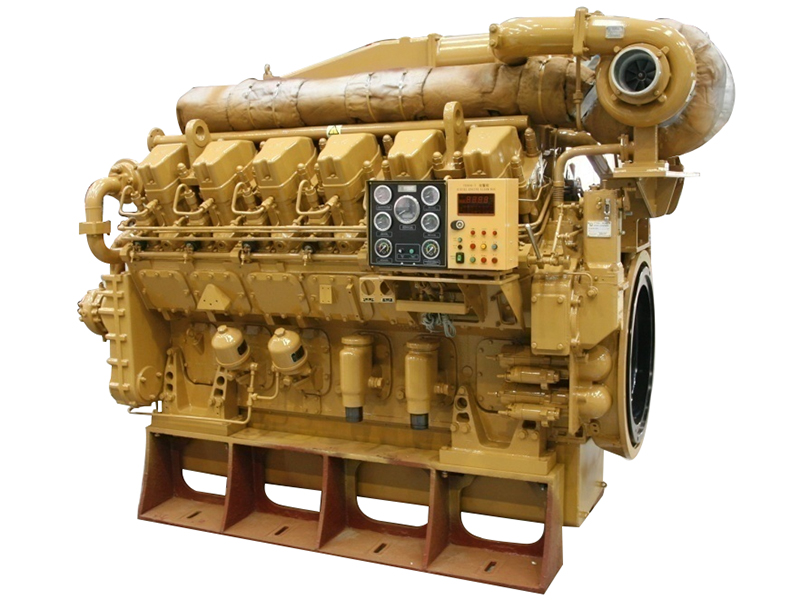

3000 Marine Engine(810KW-1200KW)

3000 Marine Engine(810KW-1200KW)

Description of 3000 Marine Engine
  • Proven reliability, longer service life
  • Economical operation, reduced downtime
  • Overall dimensions: 2969 mm ×1907 mm×2206 mm
  • Net weight: 9300 kg
  • Rated power: 810~1200 KW
Applications

This propulsion engine is ideal for transport ships and engineering vehicles, such as dredger

Click Here to Contact Sales

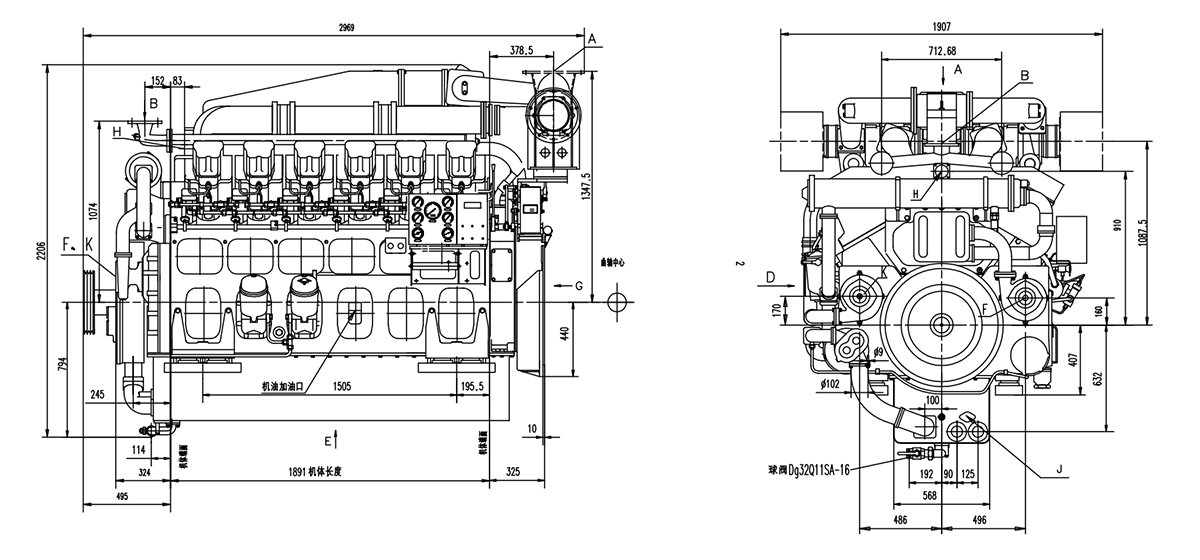

The project drawing of exterior view and interface size
    The project drawing of exterior view and interface size
Technical Specification of 3000 Marine Diesel Engine
Model Rated power (kW) Rated rpm (r/min) Fuel consumption (g/kW.h) Oil consumption (g/kW.h) Overall dimensions (mm) Net weight
(kg)
A12V190ZLC 1200 1500 ≤205 ≤1.0 2969×1907×2206 9300
A12V190ZLC1 1200 1450 ≤205 ≤1.0 2969×1907×2206 9300
A12V190ZLC-1 900 1200 ≤205 ≤1.0 2969×1907×2206 9300
A12V190ZLC-2 810 1000 ≤205 ≤1.0 2969×1907×2206 9300

    CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
