4000 Diesel Generating Set (1100-1200kW)

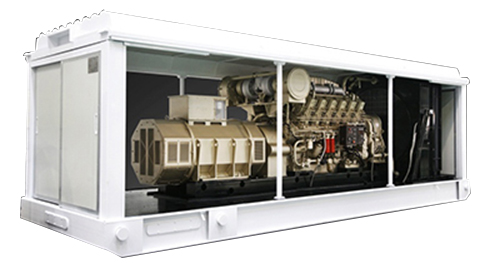

Description of 4000 Diesel Generating Set
1. A newly-designed 4000 series diesel generating set,which can make the drilling equipment advance,reliability, and suitable for all kinds of electric drilling rigs.
2. Rated frequeency :50HZ
3. Net weight:19000Kg
4. Control panel:control power transmission

Applications:
With the power ranging from 1100Kw to 1200k,two or more diesel generating sets can be used to form a power station,and supply power for electric drilling rigs.

Specification of 4000 Diesel Generating Set
Set model Diesel engine model Generator model Rated Power(kW) Rated voltage(V) Rated frequency(HZ) Overall dimensions L*B*H(mm) Net weight(Kg)
1100GF8 BL12V190ZL-2 1FCseries 1100kW 600/480V 50Hz 6250×2252×2739 19000
1200GF8 BL12V190ZL1-2 1FCseries 1200kW 600/480V 50Hz 6250×2252×2739 19000

Main Electrical Performance Data:
Voltage Frequency
Steady-state adjusting rate Transient-state adjusting tate Stable time Fluctuation rate Steady-state adjusting rate Transient-state adjusting tate Stable time Fluctuation rate
±2.5% -15%~+20% 1.5S 0.50% 5% ±10% 7S 0.50%
Voltage regulation range:no-load voltage regulaton:95~105% of rated voltage

Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
