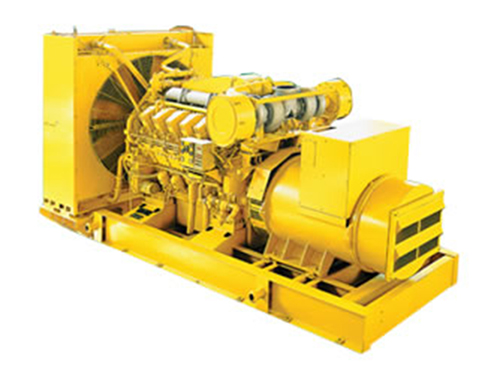

3000 B3000-Diesel Generating Set (700-1200KW)

3000 B3000 Diesel Generating Set (700-1200KW)

3000 B3000 Diesel Generating Set (700-1200KW)

Description of 3000 B3000 Diesel Generating Set:
1. A newly-designed product based on our 6000-Diesel Generating Set and internationally advanced technology
2. Rated frequency: 50HZ
3. Net weight: 15000~20200Kg
4. Control panel: control power transmission
5. Various generators are available for customer's choice

Applications:
With the power ranging from 700 KW to 1200KW, two or more diesel generating sets can be used to form a power station.

Specification of 3000 B3000 Diesel Generating Set:
Set
model
Diesel  engine
model
Generator model Rated power(KW) Rated voltage
(V)
Rated frequency (HZ) Overall dimensions L*B*H
(mm)
Net weight
(Kg)
700GF2 A8V190ZL 1FC6502-4LA92-Z 700 600/480 50 5450×2252×2738 15800
800GF5 A12V190ZL-2 1FC6566-6LA92-Z 800 600/480 50 6410×2252×2739 17200
800GF8 BH12V190ZL-2 1FC6566-6LA92-Z 800 600/480 50 6410×2200×2636 17200
1000GF2 A12V190ZLD1 1FC6504-4LA42 1000 400/230 50 6250×2250×2739 19300
1000GF4 BH12V190ZL-1 1FC6566-6LA92-Z 1000 600/480 60 6381×2200×2636 17200
1000GF5 BH12V190ZL 1FC6565-4LA92 1000 600/480 50 6381×2200×2636 17200
1000GF21 A12V190ZL MTG83 1000 600/480 50 6250×2250×2739 19300
1000GF-K A12V190ZLD1 1FC6504-4LA42 1000 400/230 50 4975×2180×2303 15000
1100GF A12V190ZLD TFW400-3-4-118 1100 6300 50 6651×2180×2739 20200
1100GF2 A12V190ZLD1 1FC6506-4LA42 1100 400/230 50 6250×2250×2739 19300
1100GF3 B12V190ZL 1FC6506-4LA42 1100 400/230 50 6381×2200×2636 17200
1200GF BH12V190ZL 1FC6566-4LA92 1200 600/480 50 6381×2200×2636 17200

Main Electrical Performance Data:
Voltage Frequency
Steady-state adjusting rate Transient-state adjusting rate Stable  time Fluctuation rate Steady-state adjusting rate Transient-state adjusting rate Stable  time Fluctuation rate
±2.5% ﹣15%~+20% 1.5S 0.5% 5% ±10% 7S 0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage

Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
