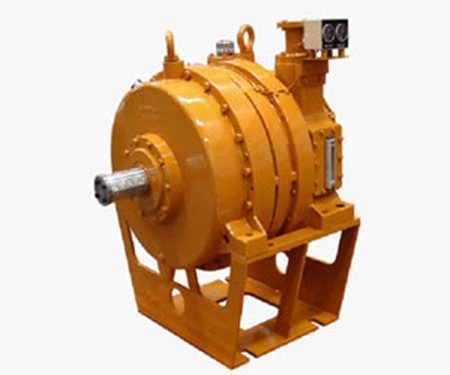

YDB670-900 Hydraulic Torque Converter With Adjustable Guide Blades

YDB670-900 Hydraulic Torque Converter With Adjustable Guide Blades

The YDB670-900 hydraulic torque converter with adjustable guide blades is a new type hydraulic transmission product designed in view of the characteristics of the working conditions for constant pressure speed-adjustable drive of high pressure plunger pumps in the petroleum and petrochemical industry. It is widely used in the fields of petrochemical and drilling rigs and primarily used for driving a variety of reciprocating compressors and pumps.

The hydraulic torque converter uses adjustable guide blades as the control elements for speed regulation. The torque converter has a wide speed regulating range and superior performance to speed-adjustable hydraulic coupling and non-adjustable hydraulic torque converter.

Advantages
1. The hydraulic torque converter with adjustable guide blades provides intelligent, multi-revolving electric actuator, and automatic closed-loop control.
2. It extends the lifetime of the electric motor and the working machine. The electric motor can offer no-load, smooth starting.
3. The torque converter meets the special requirement in the petrochemical industry by providing three years of continuous, trouble-free operation.

Main Technical Parameters
Rated input speed: 1485rpm
Rated input power: 300-1500KW
Ratio of transmission under rated working conditions: iTB*=0.92
Rated efficiency: ηmax≥85%
High efficiency range: ≥ 2.2
Regulating range: 30 %~100%
Regulation mode: automatic closed-loop control
